Selection modes

  • single keeps at most one selected element.
  • multiple lets users toggle several nodes and edges.
  • box enables multiple selection and displays a Pan/Box select mode control.

Set return_selection=True to receive selection changes without defining a custom Event.

Pan and box-select

Box mode separates two blank-canvas gestures that would otherwise compete. Choose Pan to move around the graph. Choose Box select to drag a visible rectangle over nodes. Node dragging remains available where the graph and node state permit it.

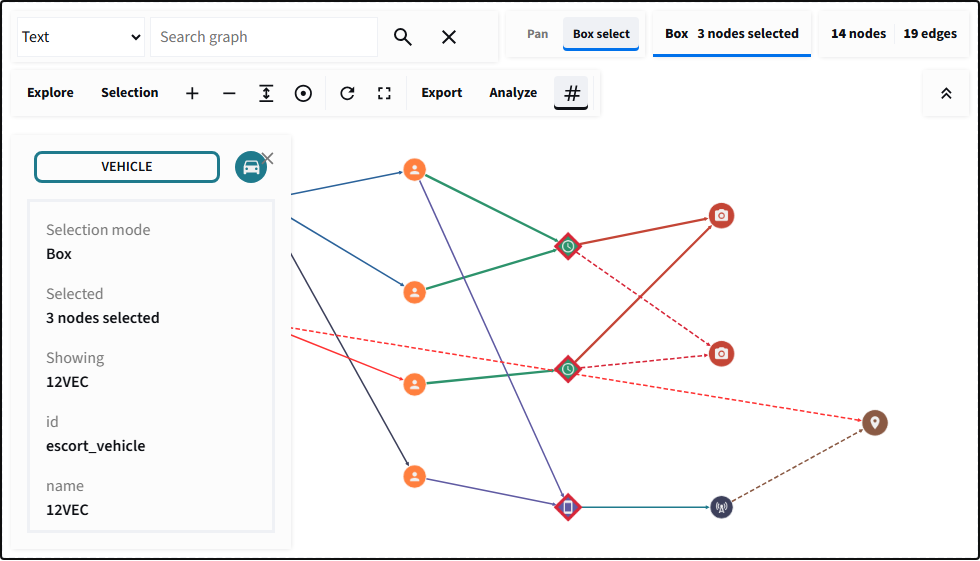

Box selection and investigation controls

The explicit canvas mode prevents every blank-canvas drag from becoming a selection.

Clearing selection

Users can click a selected node again in multiple/box mode, click blank canvas, or use Selection > Clear Selection. The details panel's X also clears selection; it does not change the Show selection details preference. The explicit Clear Selection and X actions also remove analysis-result highlights from nodes and edges. Ordinary deselection leaves those highlights intact. Search matches use their own Clear Search action; saved Python analysis results are unaffected.

Optional selection details

The Selection > Show selection details checkbox controls the on-canvas inspector independently of selection. It is available even without a selected record. Unchecking it hides the entire panel without deselecting records; later selections do not reopen it until the checkbox is enabled again. Rechecking it immediately shows the current selection, if one exists.

The panel's X clears the selected records and returned selection, leaving the checkbox unchanged. Select another node or edge to show its details again when the checkbox is enabled. Use the checkbox, not X, to hide details while keeping your selection.

Pass show_selection_details=False to start with details hidden. The default is True, preserving automatic details for existing applications. This is a preference, not a restriction: users can enable details in the Selection menu.

With a stable component key, ordinary reruns preserve the browser choice. Changing the Python argument overrides it without remounting. A new key or a browser reload starts with the supplied value; separate graph instances have independent preferences. The checkbox does not emit a selection event or alter selected records, graph positions, zoom, or pan.

Selection payloads, analysis, node actions, and CRUD remain available with the panel hidden. Use returned records to build your own detail table outside the canvas, as in the example below. Hiding the inspector is not access control.

Move connected nodes

Pass connected_drag to add Move connected nodes and a hop-depth selector to the Selection menu:

event = graph_workbench(
    elements,
    selection_mode="multiple",
    return_positions=True,
    connected_drag={
        "enabled": False,
        "depth": 1,
        "max_depth": 3,
        "max_nodes": 100,
    },
    key="connected-records",
)

The option is absent when connected_drag=None, preserving normal Cytoscape dragging. When enabled, grabbing a node freezes an undirected scope through currently visible nodes and edges. One hop moves immediate neighbors; two or three hops extend that scope. Hidden, collapsed, locked, and ungrabbable nodes do not follow. Records introduced while dragging become eligible on the next gesture.

These movement modes remain distinct:

  • Dragging an ordinary node moves that node.
  • Dragging a selected node moves Cytoscape's selected group.
  • Dragging a compound parent keeps Cytoscape's native descendant movement.
  • Connected dragging adds eligible unselected followers without selecting them.

Followers receive exactly the anchor's position delta, so relative spacing is preserved and edges redraw naturally. This is rigid synchronization, not a continuous physics simulation or a new layout. It changes coordinates only; node and edge data properties remain unchanged.

If the candidate scope exceeds max_nodes, no connected follower moves. Native anchor/selected-group dragging still works, and the toolbar reports the candidate count, configured limit, and advice to reduce depth. Connected following is also suspended while a layout is running.

With a stable key, ordinary reruns preserve toolbar choices. An explicitly changed Python default overrides them. Separate instances are independent, and a reload or new key starts from the supplied defaults.

Search modes

Enable the panel with search=True. Search highlights matches without selecting them, fits the viewport around those matches, and preserves the rest of the graph as context.

Search inputs and dropdowns use 16px text, with 14px status feedback and controls at least 40px high. Narrow containers wrap controls onto additional rows instead of shrinking text. Graph labels keep their independent style and zoom behavior.

Mode Example Matches
Text 08:14 Captions, labels, and property values
Node label VEHICLE Node data.label
Edge label SEEN_AT Edge data.label
Property risk:10 A named data field and value
Selector node[risk >= 8] A Cytoscape selector

Invalid selectors should be shown to the user as search feedback rather than used to change Python state.

Selection payload

The returned selection data dictionary contains selected node/edge IDs, connected node/edge IDs, the last selected record, complete selected records, and complete connected records. IDs are ideal for database queries; records are ideal for immediate display and export.

Use selected records

import json
from pathlib import Path

import streamlit as st

from st_graph_workbench import graph_workbench, records_to_dataframe

elements = json.loads(
    Path("examples/data/intelligence_case.json").read_text(encoding="utf-8")
)
event = graph_workbench(
    elements,
    selection_mode="box",
    return_selection=True,
    # Keep selection events and the Python table without an automatic inspector.
    show_selection_details=False,
    search=True,
    key="investigation-selection",
)

event_data = event.get("data", {}) if isinstance(event, dict) else {}
returned_records = (
    event_data.get("selected_elements") or event_data.get("matched_elements") or []
)

st.dataframe(records_to_dataframe(returned_records), hide_index=True)

The dataframe can be joined to source records, filtered by confidence, grouped by location, or passed into a case report without scraping the graph canvas.

Conclusion

Selection is both a visual state and an application input. Keep deselection obvious, preserve graph context during search, and explain what Python does with the returned records.

Try /learn_selection, /learn_search, or /investigation_tools in the local examples app.
