Rendering and layouts

On this page

Component options

graph_workbench() groups its options by responsibility:

Concern Options
Graph input elements, layout, node_styles, edge_styles
Streamlit identity key, on_change, height
Node workflows node_actions, crud_actions, edit_actions
Interaction events, selection_mode, return_selection, show_selection_details, connected_drag, search, toolbar
Analysis and output analysis_actions, return_positions
Viewport viewport_actions, min_zoom, max_zoom, wheel_sensitivity
Scale and synchronization performance_profile, graph_commands, elements_sync
Validation validate

Action arguments take lists even when one action is enabled. height is a positive integer pixel value. Zoom bounds and wheel sensitivity must be finite; min_zoom cannot exceed max_zoom, and sensitivity must be greater than zero.

Adaptive toolbar

The toolbar defaults to an adaptive top position. It uses labelled menus when the component is wide and compact icon menus when width is limited. Its measured height is reserved above the Cytoscape canvas, including when compact search is opened, so wrapped controls do not cover nodes.

graph_workbench(
    elements,
    toolbar={
        "mode": "adaptive",  # adaptive, expanded, compact, or minimized
        "position": "top",
        "collapsible": True,
        "sticky": True,      # reserve toolbar space above the canvas
    },
)

The minimize/restore control changes only presentation. A stable component key preserves that browser preference through ordinary reruns. Set collapsible=False for an application-controlled presentation, or sticky=False to intentionally overlay the toolbar on the canvas. Frontend contributors can follow the complete component lifecycle in Frontend architecture.

Supported layouts

Layout Best suited to
preset Saved or manually assigned positions
cose General force-directed exploration
fcose Higher-quality force-directed layouts and compound graphs
dagre Directed and hierarchical flows
cola Constraint-oriented force layouts
grid Regular comparison without topology emphasis
circle Small networks and equal visual treatment
concentric Ranking nodes around a center
breadthfirst Rooted traversal or tree-like relationships
random Diagnostics and a neutral starting distribution

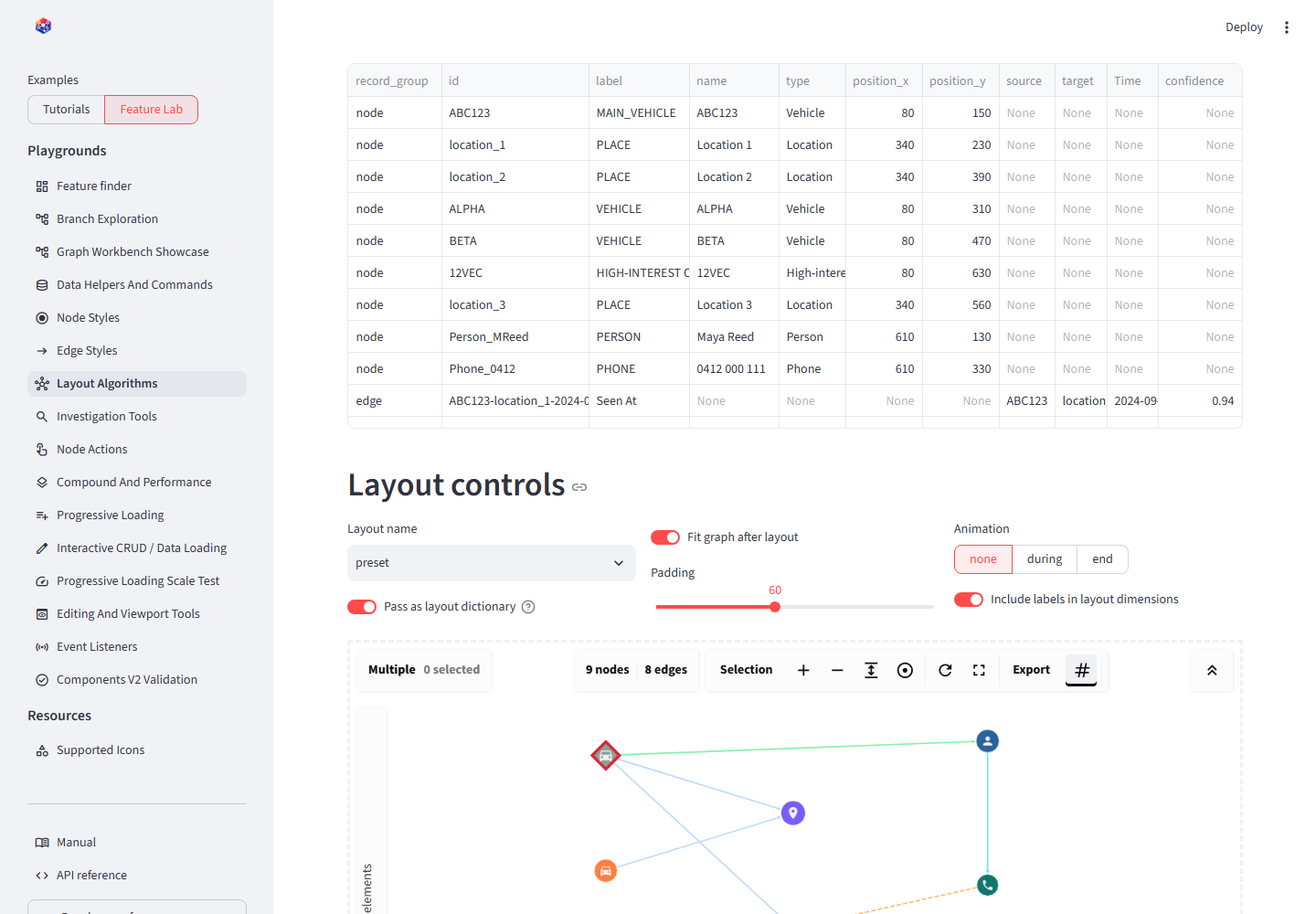

The same graph rendered with a selected layout

The layout demo keeps the records fixed so only node placement changes.

Layout dictionaries

A string uses library defaults. A dictionary forwards supported Cytoscape layout options after validating name:

layout = {
    "name": "dagre",
    "rankDir": "LR",
    "fit": True,
    "padding": 48,
    "animate": False,
}

For a command-driven graph, request a new layout without replacing elements:

command = viewport_command(
    "layout-after-expansion",
    "run_layout",
    layout={"name": "fcose", "fit": True, "padding": 40},
)

Preset positions

Each positioned node uses {"position": {"x": ..., "y": ...}} and the graph uses layout={"name": "preset", "fit": True}. Do not select preset for records that do not contain positions unless an empty/default placement is acceptable.

Live updates and remounts

Changing layout runs the newest requested layout and ignores stale async callbacks from an older request. Height and zoom-bound changes update the live instance. Change the component key only when an initialization-only option, such as wheel_sensitivity, must be reapplied.

Layouts calculate a complete arrangement. Native selected-group dragging and compound-parent dragging are direct Cytoscape interactions. connected_drag instead synchronizes a bounded visible neighborhood with one grabbed node for the duration of that gesture. None of these operations alter record properties. Use return_positions=True and a preset layout when the application must retain manual placement across reruns or incremental data loads.

Conclusion

Choose layouts for the analytical question, not decoration. Preserve positions with preset once manual placement becomes part of the investigation record.
