Editing and viewport tools

On this page

Browser-local editing

Edit actions change Cytoscape immediately and return an edit event. This provides responsive interaction while allowing Python to accept, reject, persist, or audit the change afterward.

Browser editing or CRUD?

Browser editing is edit-first: an immediate change, then a Python event. CRUD is approval-first: Python validates and accepts a request before changing the graph.

  • Sketch a possible sighting connection with browser editing; use CRUD when recording a confirmed observation in the maintained dataset.
  • Try alternative service dependencies with undo/redo; use CRUD to update the approved inventory after checking required fields and permissions.
  • Draft alternative process flows during a workshop; use CRUD to accept and maintain the chosen workflow or knowledge-graph relationships.

A combined application can review drafts, assign domain types, then explicitly validate and save them in Python. The tutorial does not automatically promote drafts or save them to a database. Browser undo does not undo an external write.

Draft types and returned records

The browser's Add Node tool creates label="NODE" with a generated ID and name. Connect creates label="RELATED". The local editing tutorial at /learn_editing styles these as gold document nodes labelled Draft node and dashed links. Their actual data is not renamed. This is a lesson-specific styling convention, not a built-in approval flag; the CRUD dialog offers domain-type choices before creating a record.

The tutorial places the Python checkpoint beside the latest browser edit report. It does not copy browser edits into the source records. Adding a draft produces 8 browser nodes versus 7 Python nodes. Added/updated records are partial results; deletion returns IDs, grid snapping returns positions, and undo/redo returns a full snapshot. The counts describe the last reported edit, not a live readback. Later selection events do not replace that report.

The local Editing Feature Lab at /editing_viewport_tools demonstrates an additional choice: mirroring edit events into Python session state. Mirroring is application code, not automatic database persistence.

Edit actions

Value Browser behavior
add_node Adds a temporary node near the viewport center
connect_selected Connects exactly two selected nodes
delete_selected Removes selected nodes and edges
lock_selected / unlock_selected Changes layout locking
make_ungrabbable / make_grabbable Disables or enables node dragging
snap_to_grid Rounds node positions to the browser grid
undo / redo Moves through bounded browser edit history

The large and dense profiles use smaller undo histories to control memory.

Viewport actions

Value Behavior
toggle_zoom Enables or disables user zoom gestures
toggle_pan Enables or disables user canvas panning
save_viewport Stores current pan and zoom in the component instance
restore_viewport Restores the saved browser view
reset_viewport Resets and fits the graph

The standard view bar also exposes fit, center, and zoom controls.

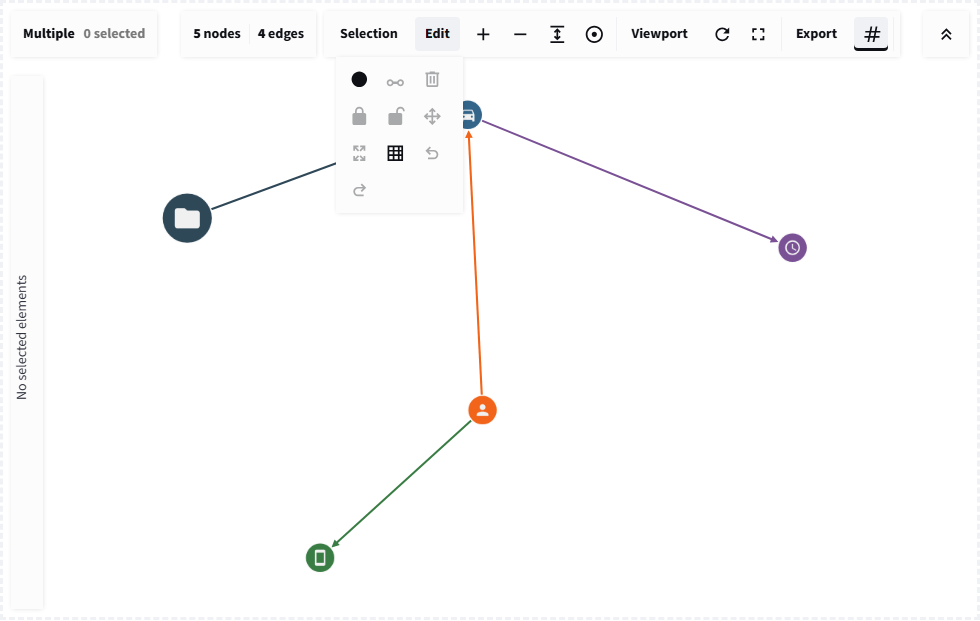

Editing and viewport tool groups

Immediate browser tools return operation details that Python can mirror into durable state.

Viewport options

min_zoom, max_zoom, and wheel_sensitivity constrain browser navigation. Bounds update on the live graph. Wheel sensitivity is initialization-only and needs a changed key when its value must change after mounting.

Mirroring browser state

For each new edit event, use its operation and returned elements/IDs to update Python state. For positions events, copy each position into its matching node. Deduplicate by timestamp, then validate the resulting graph before persisting.

Browser undo is not durable across remounts. Applications requiring durable history should store domain operations in Python or the backing service.

Conclusion

Use browser editing for immediacy and Python for authority. Document which actions are automatically persisted so users do not confuse a visual edit with a committed record change.
