CRUD and data loading

On this page

CRUD ownership

CRUD buttons emit structured intents. Python owns dialogs, validation, authorization, persistence, and graph mutation. This keeps database credentials and business rules outside the browser component.

CRUD or browser editing?

CRUD changes are approval-first: request, Python form, validation, then an accepted change. Browser editing changes the displayed graph immediately and reports the edit afterward.

  • Record a confirmed vehicle sighting with CRUD; sketch a possible connection with browser editing while reviewing evidence.
  • Maintain an approved service-dependency inventory with CRUD; experiment with a proposed dependency and undo it using browser editing.
  • Validate a maintained process or knowledge-graph relationship with CRUD; use browser drafts to explore alternative flows in a workshop.

Both can be used in one application: draft, review, assign domain types, then validate and explicitly save accepted changes in Python. Neither a browser event nor a style constitutes authorization. The tutorial's accepted records live in session state; it does not implement database persistence or automatic promotion.

Choosing record types

The local CRUD tutorial at /learn_crud offers node types for locations (PLACE), vehicles, people, phones, cameras, times, and checkpoints. Its relationship choices are Seen At, Registered To, Uses, Seen Near, and Related. These are sample application choices, not library restrictions.

id identifies the record, label selects its category and matching style, and name is separate display text. Choose Camera and enter Camera 8 to create a camera; changing the name alone does not change the category. Select at least one node to enable Create edge. Selecting two nodes prefills both endpoints in the tutorial dialog; confirm the source and target explicitly. Add domain rules about allowed types before saving production records; the tutorial validates IDs and graph references, not those business rules.

Confirmed changes update the accepted Python table and send an incremental command to the browser. The displayed command is an instruction, not a browser readback. The local CRUD Feature Lab at /crud_data_loading adds custom-property forms for more detailed experiments.

Available intents

Value Intended application response
create_node Open an add-node form, using the suggested graph position
create_edge Open an edge form, seeded from selected nodes
read_selected Display selected and connected records
update_selected Edit the data of exactly one selected element
delete_selected Confirm removal of selected IDs and incident edges
request_node_data Query and load records related to one selected node

Event context

A CRUD event's data dictionary can contain:

  • operation: requested CRUD operation.
  • selected_node_ids and selected_edge_ids: compact mutation targets.
  • connected_node_ids and connected_edge_ids: immediate graph context.
  • last_selected: complete most-recently selected element.
  • selected_elements and connected_elements: complete records for forms, inspection, exports, and joins.
  • suggested_position: browser coordinate for a new node.

Dialog workflow

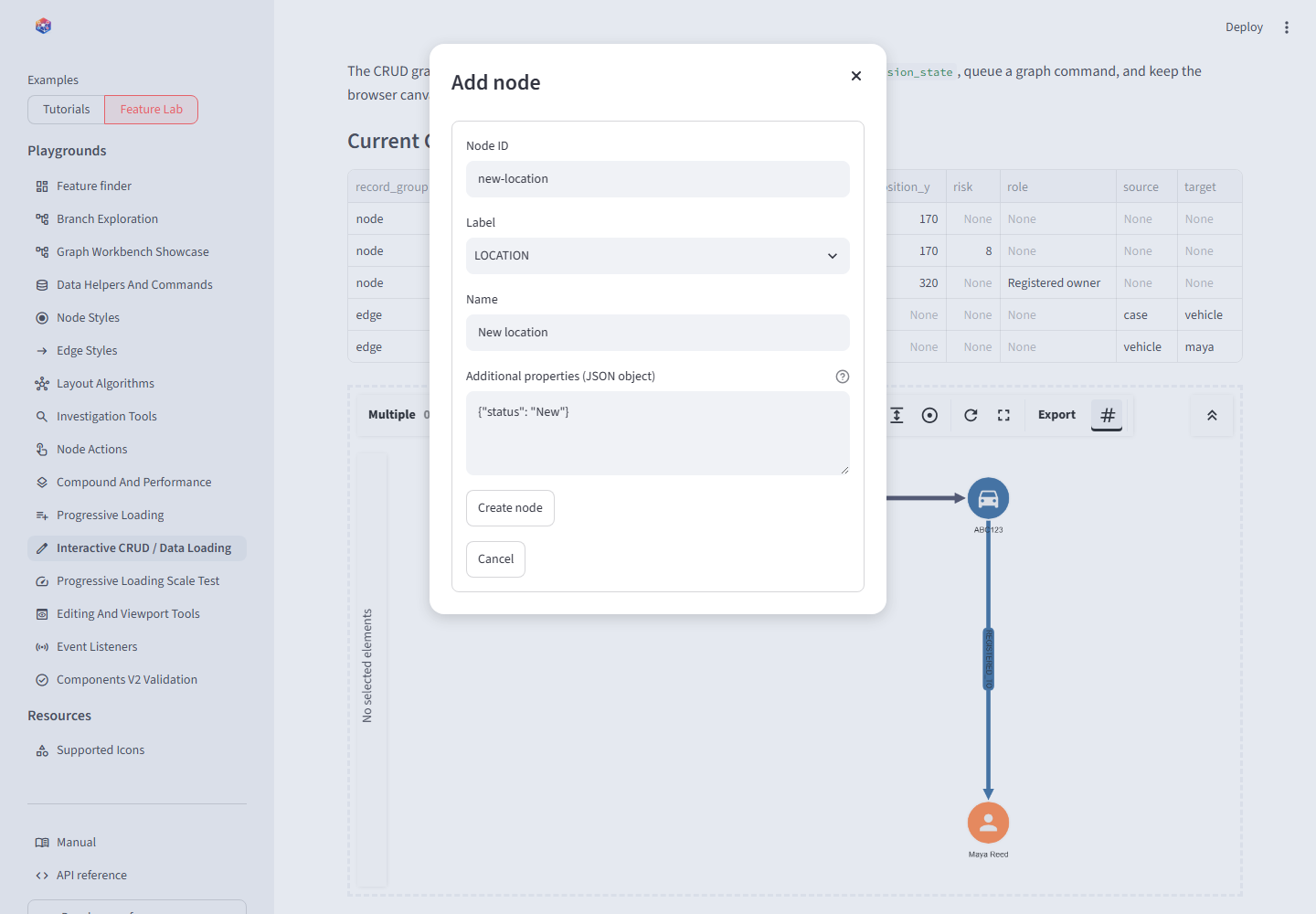

Add-node CRUD dialog over the graph

The component requests creation; a Streamlit dialog collects and validates the durable record.

Use @st.dialog, place related fields in st.form, and mutate only after the form submits. Store the event that opened the dialog so its selection context remains available during the dialog rerun.

@st.dialog("Add node")
def create_node_dialog(event):
    with st.form("create-node"):
        node_id = st.text_input("Node ID")
        label = st.text_input("Label", value="LOCATION")
        name = st.text_input("Name")
        submitted = st.form_submit_button("Create node")

    if submitted:
        command = upsert_elements_command(
            next_command_id("create-node"),
            nodes={
                "data": {"id": node_id, "label": label, "name": name},
                "position": event["data"]["suggested_position"],
            },
        )
        queue_graph_command(command)
        st.rerun()

Safe mutation sequence

  1. Deduplicate the event timestamp.
  2. Validate the operation and current selection.
  3. Collect application fields in a dialog.
  4. Validate IDs, endpoint references, and business rules.
  5. Persist to the authoritative store.
  6. Apply the same command to Python graph state.
  7. Send the unique command to the browser.
  8. Clear dialog and command state after it has been handled.

When deleting a node with remove_incident_edges=False, reject the operation if it would leave dangling edge references.

Conclusion

The graph is an efficient CRUD surface, not the data authority. Keeping writes in Python makes dialogs testable and prevents a failed edge creation from leaving browser and session state inconsistent.
